Overview
BRACELET (Binary Reachability Analysis with Compiler-Enhanced Lifting for Execution and Triage) is a set of tools for triaging vulnerabilities in the dependencies of a C or C++ application. BRACELET assists security engineers when triaging upstream vulnerability reports by automatically excluding vulnerabilities that are unreachable in their specific application context.
BRACELET currently supports C and C++ applications built with vcpkg.1 The first step to using BRACELET is to compile the application and its dependencies with the BRACELET toolchain. This toolchain embeds lightweight metadata into the final enhanced application binary. This metadata later feeds into BRACELET’s analyses.
When a CVE is discovered in a dependency, a developer or user encodes information about it (e.g., the affected package name, version, and function) into a simple, small JSON file. BRACELET consumes this information and analyzes the shipped enhanced binary to determine whether the vulnerability is reachable.
At a high level, BRACELET performs several tiers of analyses of escalating complexity and power:
- BRACELET first checks that the application was linked against the dependency version(s) that are affected by the vulnerability.
- Next, it performs a form of precise yet scalable static analysis (pointer
analysis) to construct a sound (i.e., overapproximate) and precise
callgraph. If the vulnerable function is not reachable from
main, the vulnerability is reported as unreachable. - If the vulnerability is deemed reachable, BRACELET supports synthesis of a test-case with Screach, a tool for binary-level symbolic execution.
The first two steps are highly automated. The third generally requires some manual intervention.
Notably, BRACELET’s triaging capabilities do not require access to source code. If an application was built the BRACELET toolchain, downstream users may use BRACELET to triage even a closed-source application.

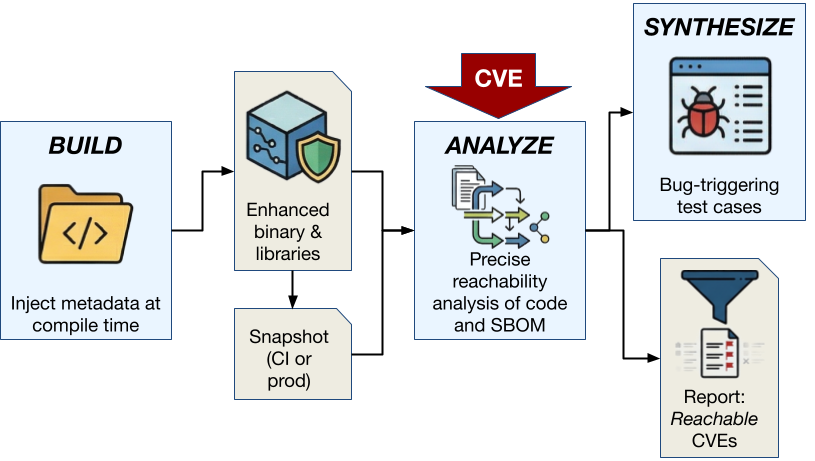

The following diagram shows the BRACELET workflow in a bit more detail:
---
title: BRACELET Workflow
---
flowchart
direction TB
classDef artifact fill:#d9d5d4;
classDef braceletImpl fill:#c2e4ff;
classDef upstream fill:#cea6f5
subgraph Building
vcpkg[VCPKG Application]
vcpkg_port1[VCPKG Port 1]
vcpkg_port2[VCPKG Port 2]
bracelet_compiler[BRACELET Extended Compiler]
app[Compiled Application]
port_lib1[Port 1 Library Artifact]
port_lib2[Port 2 Library Artifact]
vcpkg --Package Metadata--> bracelet_compiler
vcpkg_port1 --Port Metadata--> bracelet_compiler
vcpkg_port2 --Port Metadata--> bracelet_compiler
bracelet_compiler --> app
bracelet_compiler --> port_lib1
bracelet_compiler --> port_lib2
class vcpkg,vcpkg_port1,vcpkg_port2,app,port_lib1,port_lib2 artifact;
class bracelet_compiler braceletImpl;
end
app ----> running
port_lib1 ----> running
port_lib2 ----> running
subgraph Snapshotting
running[Running Program]
snapshot_script[Snapshot Script]
snapshot[Snapshot]
running --> snapshot_script
snapshot_script --> snapshot
class snapshot_script braceletImpl;
class running,snapshot artifact;
end
subgraph Reachability
snapshot[Snapshot]
vuln[Vulnerabilities JSON]
bracelet-entry[BRACELET Entrypoint Script]
reachability-results[Reachability Results JSON]
snapshot --> bracelet-entry
vuln --> bracelet-entry
bracelet-entry --"Points-to analysis"--> reachability-results
class snapshot,vuln,reachability-results artifact;
class bracelet-entry-post,points-to,bracelet-entry,bracelet-edges,lightweight-analysis braceletImpl;
class svf upstream;
end
The BRACELET entrypoint script consumes a snapshot and vulnerability description and then orchestrates a reachability analysis. The script extracts metadata using bracelet-edges to determine the address of function entrypoints associated with each vulnerability. This matching checks for the existence of a target symbol and that it came from the vulnerable version range specified in the vulnerability.json. The script then constructs a callgraph either via a lightweight datalog analysis or SVF pointer analysis. If the target function is not in the callgraph the vulnerability is marked unreachable, otherwise the function is labeled as potentially reachable and a sample callgraph path is included as evidence.
Below is a detailed overview relating analysis steps to implementation details. For getting started read this chapter for installation instructions and the Example 1 walkthrough for a complete example.
Detailed Overview
The following diagram expands on the one shown above with additional details:
---
title: BRACELET Workflow
---
flowchart
direction TB
classDef artifact fill:#d9d5d4;
classDef braceletImpl fill:#c2e4ff;
classDef upstream fill:#cea6f5
subgraph Building
vcpkg[VCPKG Application]
vcpkg_port1[VCPKG Port 1]
vcpkg_port2[VCPKG Port 2]
bracelet_compiler[BRACELET Extended Compiler]
app[Compiled Application]
port_lib1[Port 1 Library Artifact]
port_lib2[Port 2 Library Artifact]
vcpkg --Package Metadata--> bracelet_compiler
vcpkg_port1 --Port Metadata--> bracelet_compiler
vcpkg_port2 --Port Metadata--> bracelet_compiler
bracelet_compiler --> app
bracelet_compiler --> port_lib1
bracelet_compiler --> port_lib2
class vcpkg,vcpkg_port1,vcpkg_port2,app,port_lib1,port_lib2 artifact;
class bracelet_compiler braceletImpl;
end
Building --"Post-hoc Triage"--> Snapshotting
subgraph Snapshotting
direction LR
shared_lib[Shared Libraries]
dyn_lib[Dynamic Libraries]
app2[Application]
loader[Linker/Loader]
running[Running Program]
snapshot_script[Snapshot Script]
gdb[GDB]
coredump[Coredump]
sysroot[Sysroot]
app2 --> loader
shared_lib --> loader
loader --> running
dyn_lib --"Linked at Runtime"--> running
running --> snapshot_script
snapshot_script --> gdb
gdb --> coredump
gdb --"Shared Libraries"--> sysroot
class snapshot_script braceletImpl;
class gdb,loader upstream;
class app2,dyn_lib,shared_lib,running,coredump,sysroot artifact;
end
Snapshotting --"Reachability Analysis"--> Reachability
subgraph Reachability
direction LR
snapshot[Snapshot]
vuln[Vulnerabilities JSON]
bracelet-entry[BRACELET Entrypoint Script]
bracelet-entry-post[BRACELET Entrypoint Post Processing]
svf[SVF]
bracelet-edges[BRACELET Edges]
lightweight-analysis[Lightweight Datalog Analysis]
points-to[BRACELET Points-To]
reachability-results[Reachability Results JSON]
snapshot --> bracelet-entry
vuln --> bracelet-entry
bracelet-entry --> bracelet-edges
bracelet-edges --"Datalog Facts"--> lightweight-analysis
lightweight-analysis --"Callgraph"--> bracelet-entry-post
bracelet-entry --> points-to
points-to --"C Representation of Edges"--> svf
svf --Callgraph--> bracelet-entry-post
bracelet-entry-post --> reachability-results
class snapshot,vuln,reachability-results artifact;
class bracelet-entry-post,points-to,bracelet-entry,bracelet-edges,lightweight-analysis braceletImpl;
class svf upstream;
end
And the compilation workflow:
---
title: BRACELET Compilation Workflow
---
flowchart LR
file[Source File]
clang[Clang]
comp_wrap[BRACELET Compiler Wrapper]
reachability_pass[Reachability Pass]
annotated_binary[Annotated Object File]
reachability_pass --"Invoked by"--> comp_wrap
comp_wrap --"Appends required flags"---> clang
file --> comp_wrap
clang --> annotated_binary
classDef artifact fill:#d9d5d4;
classDef braceletImpl fill:#c2e4ff;
class comp_wrap,reachability_pass braceletImpl;
class file,annotated_binary artifact;
The above graph shows how a single source file is compiled with points-to metadata. The BRACELET toolchain compiler wrapper generated from build_base/compiler_wrapper.sh
consumes a source file and produces an object file containing metadata in the GR_graph_edges and GR_graph_debug sections. The rest of the compilation process after
The reachability LLVM pass located in
src/BRACELETReachability traverses an LLVM module and creates globals in several sections that store tuples described in the metadata chapter.
